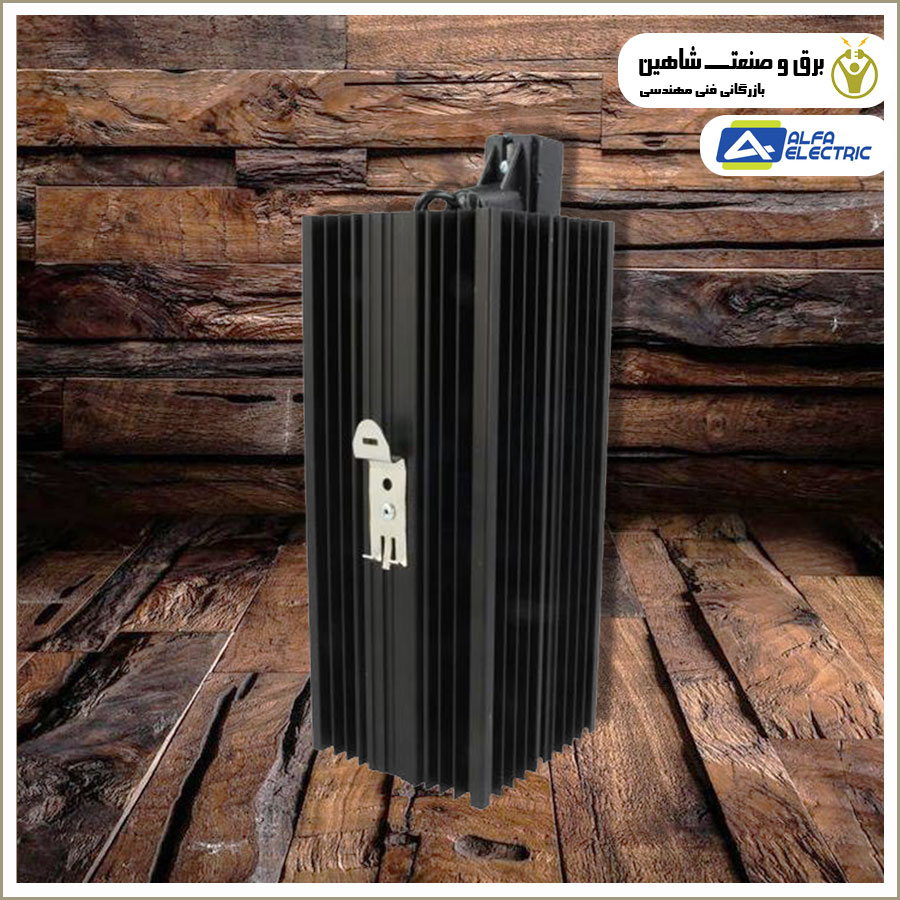

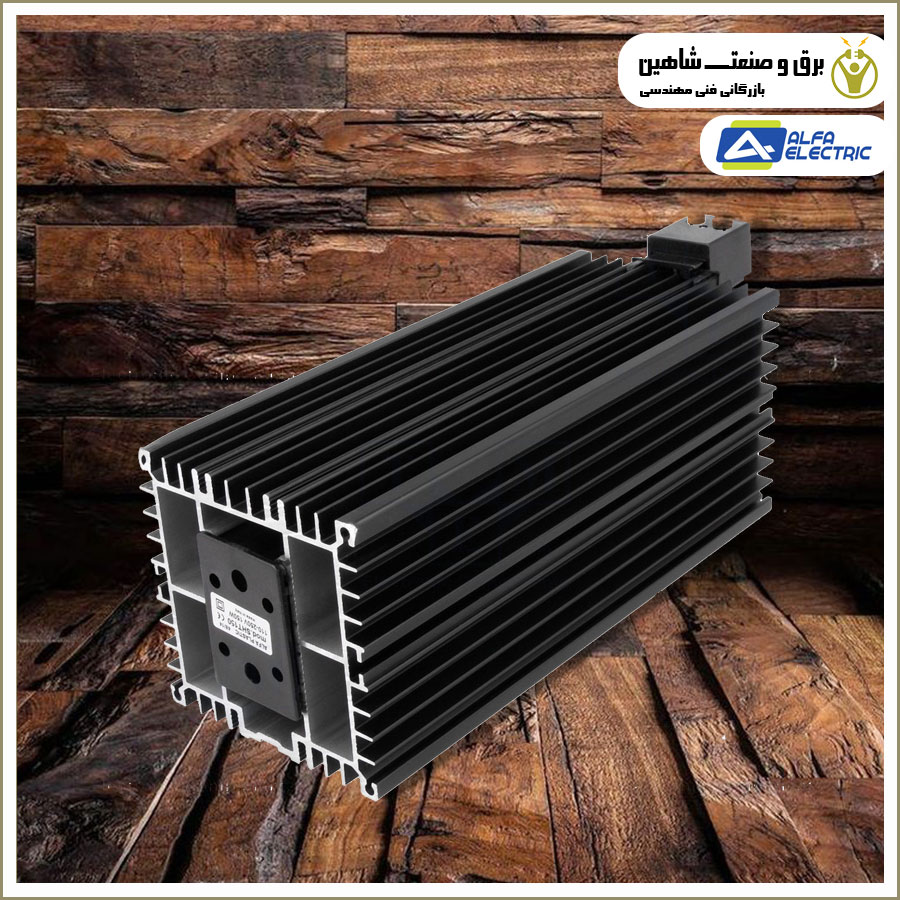

| Features | Unit | SHT150 | |
|---|---|---|---|
| Heating Capacity* | W | 150 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 9.5 | |
| Delayed fuse (advised) | A | 10 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile anodized | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 220x90x80 | |
